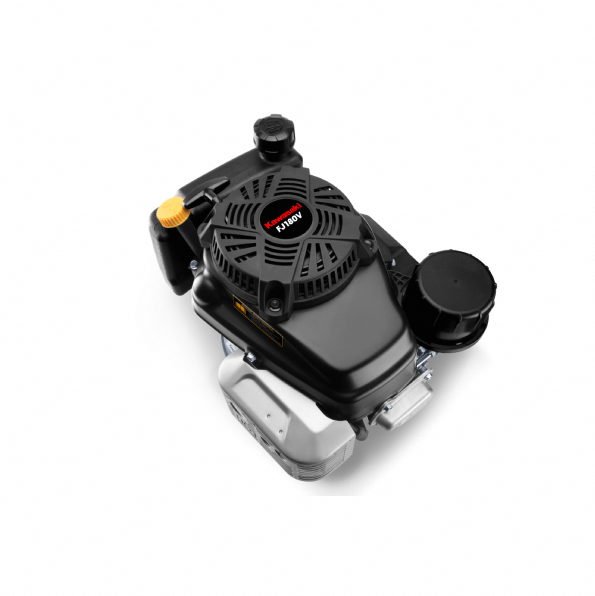

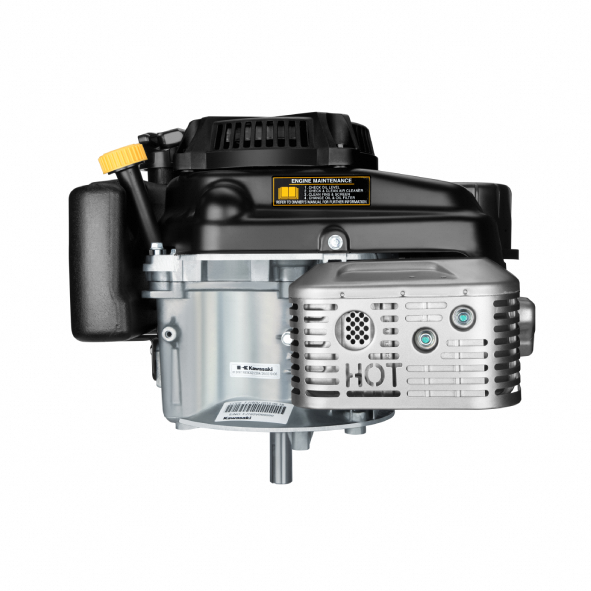

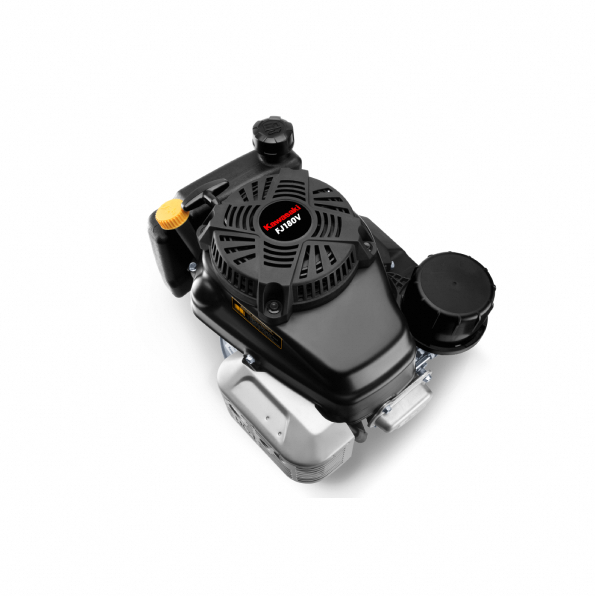

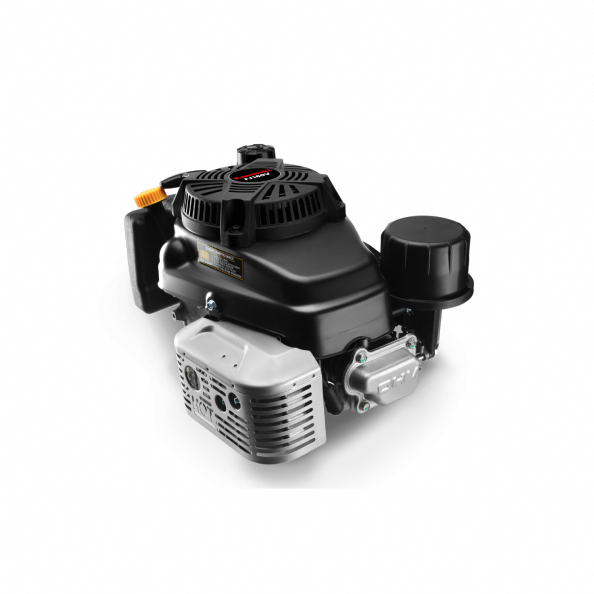

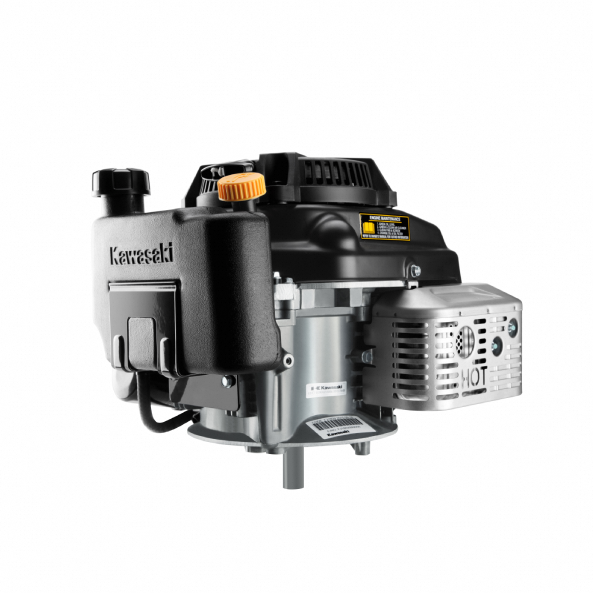

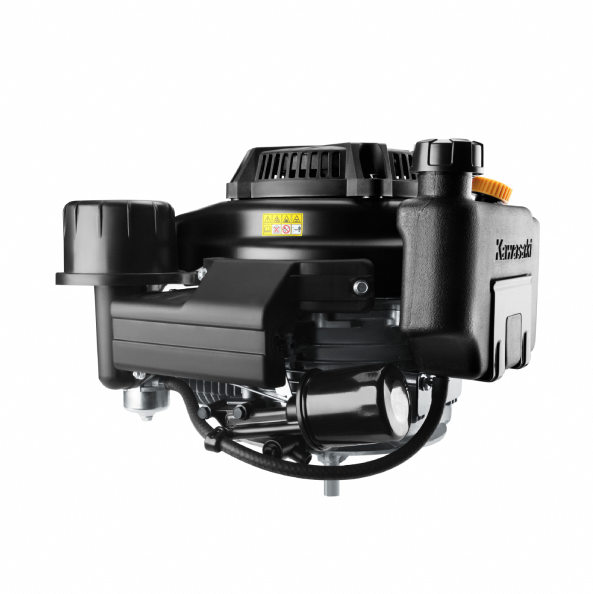

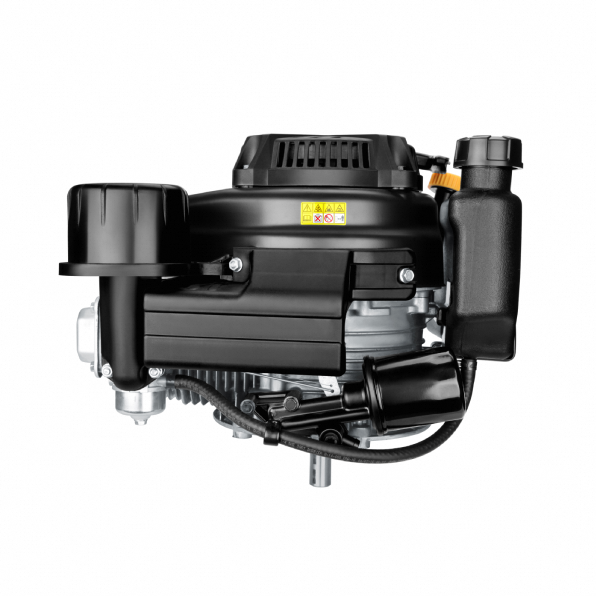

FJ180V
Engine Type：Air-cooled, 4-stroke, Vertical shaft, OHV
Number of cylinders：1
Number of cylinders：1
Technical Specifications
| Engine Type | Air-cooled, 4-stroke, Vertical shaft, OHV |
| Number of cylinders | 1 |
| Bore x stroke | 65 x 54 mm |
| Displacement | 179 cm³ |
| Max. power | 3.4 kW (4.5 hp) / 3600 rpm |
| Max. torque | 10.0 Nm (7.3 ft.lbs) / 2400 rpm |
| Fuel tank capacity (litres) | 1.6 litres |
| Oil capacity (litres) | 0.65 litres |
| Dry weight | 16.9 kg |

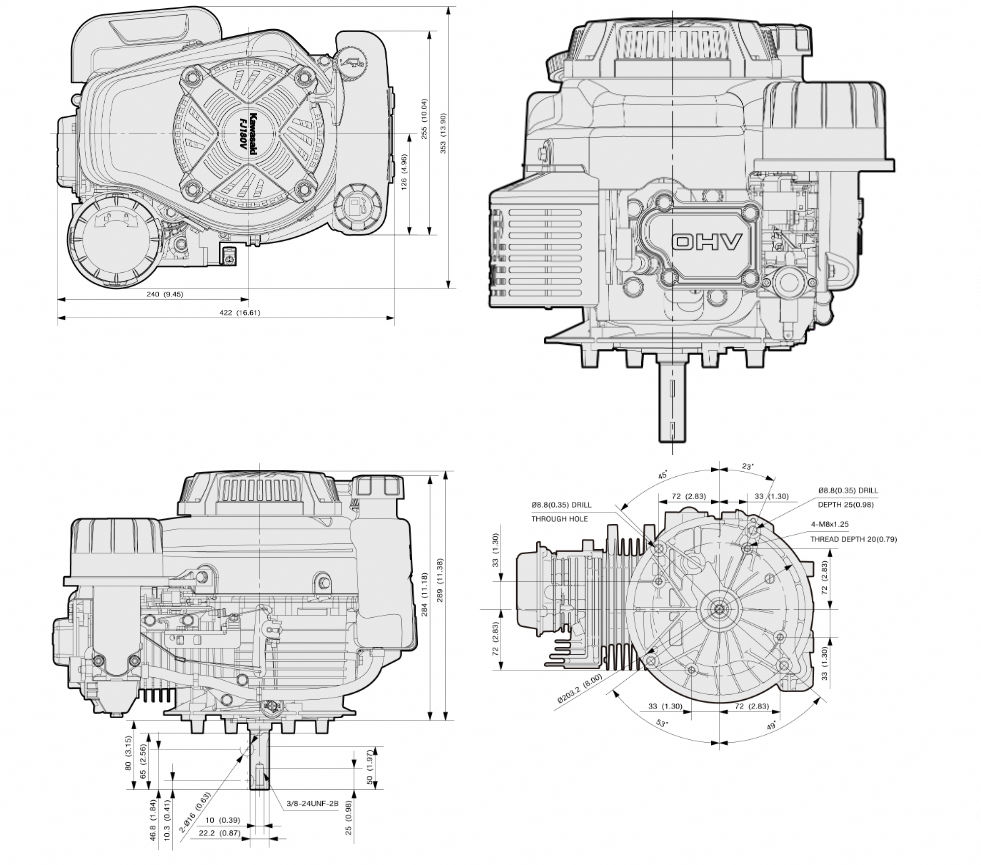

| Dimensions (L x W x H) (mm) | 422 x 353 x 289 (with tank) 389 x 353 x 289 (without tank) |
Type
● Stroke
● Air Cooled
● Single Cylinder
● Overhead Valve
● Vertical Shaft

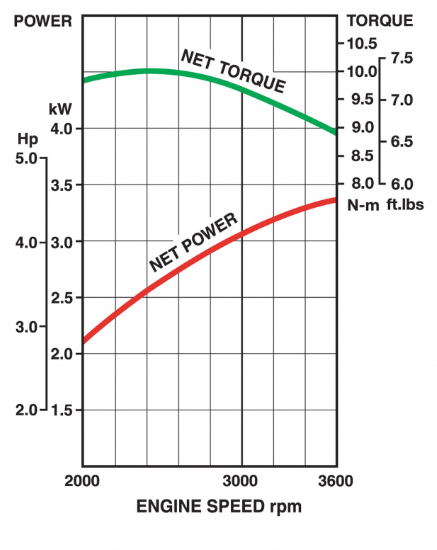

Performance curves
The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349. Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
